SystemVerilog TestBench

SystemVerilog TestBench Architecture


About TestBench


Testbench or Verification Environment is used to check the functional correctness of the Design Under Test (DUT) by generating and driving a predefined input sequence to a design, capturing the design output and comparing with-respect-to expected output.

Verification environment is a group of class's performing specific operation. i.e, generating stimulus, driving, monitoring, etc. and those classes will be named based on the operation.

TestBench Components



Name
Type
Description
transaction
class
Defines the pin level activity generated by agent (to drive to DUT through the driver) or the activity has to be observed by agent (Placeholder for the activity monitored by the monitor on DUT signals).

generator
class
Generates the stimulus (create and randomize the transaction class) and send it to Driver.
driver
class
Receives the stimulus (transaction) from a generator and drives the packet level data inside the transaction into pin level (to DUT).
monitor
class
Observes pin level activity on interface signals and converts into packet level which is sent to the components such as scoreboard.
agent
class
An agent is a container class, which groups the class’s (generator, driver, and monitor) specific to an interface or protocol.
scoreboard
class
Receives data items from monitors and compares them with expected values.
Expected values can be either golden reference values or generated from the reference model.
environment
class
The environment is a container class for grouping higher level components like agent's and scoreboard.
test
program
The test is responsible for,
  • Configuring the testbench.
  • Initiate the testbench components construction process.
  • Initiate the stimulus driving.
testbench_top
module
This is the topmost file, which connects the DUT and TestBench. It consists of DUT, Test and interface instances, the interface connects the DUT and TestBench.

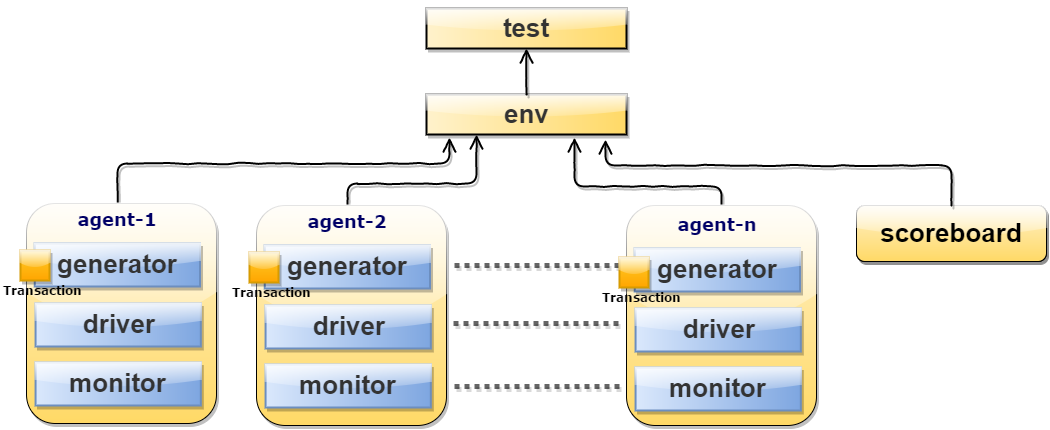

TestBench Hierarchy

TestBench Architecture
SystemVerilog TestBench hierarchy




TestBench Architecture


SystemVerilog testbench architecture
