Packed and Unpacked array

Packed and Unpacked array in SystemVerilog


  • The term packed array is used to refer to the dimensions declared before the data identifier name
  • The term unpacked array is used to refer to the dimensions declared after the data identifier name

bit [7:0] temp_var; // packed array of bit types
bit temp_var [7:0]; // unpacked array of real types


Packed array


  • Packed arrays can be of single bit data types (reg,logic,bit), enumerated types, and recursively packed arrays and packed structures
  • One dimensional packed array is referred as a vector
    • Vector: A vector is multi-bit data object of reg/logic/bit declared by specifying a range
    • Scalar: Scalar is 1-bit data object of reg/logic/bit declared without specifying a range
  • A packed array is a mechanism for subdividing a vector into sub-fields, which can be conveniently accessed as array elements.
  • A packed array is guaranteed to be represented as a contiguous set of bits.

Example:

bit [2:0] [7:0] array5;

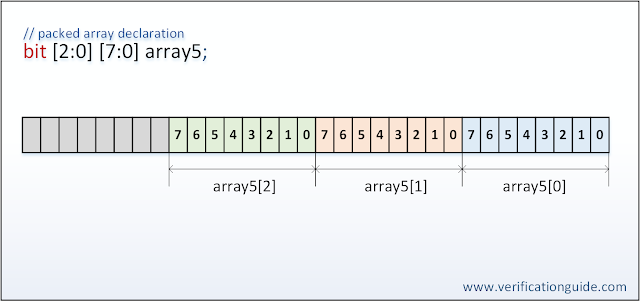

Below diagram shows storing packed array as contiguous set of bits.

SystemVerilog Packed array
SystemVerilog Packed array

UnPacked array


  • Unpacked arrays can be of any data type.
  • Unpacked arrays shall be declared by specifying the element range's after the identifier name.
  • An unpacked array may or may not be so represented as contiguous set of bits.

Example:

bit [7:0] array4[2:0];

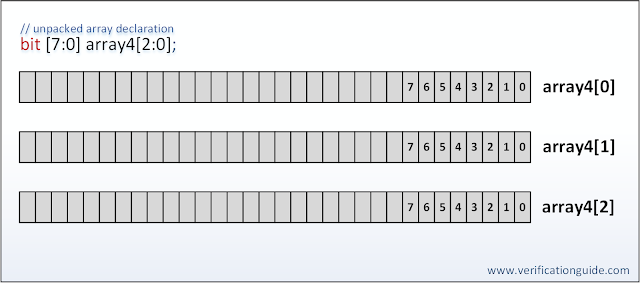

Below diagram shows storing unpacked array as non-contiguous set of bits.

SystemVerilog unpacked array
SystemVerilog Unpacked array
