SystemVerilog Fork Join


  fork join


Fork-Join will start all the processes inside it parallel'y and wait for the completion of all the processes.

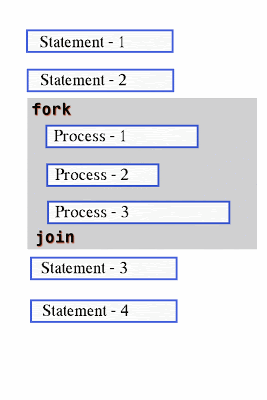

SystemVerilog Fork-Join

*click on image for better view


  Example-1:


In below example,
fork block will be blocked until the completion of process-1 and Process-2. Both process-1 and Process-2 will start at same time, Process-1 will finish at 5ns and Process-2 will finish at 20ns. fork-join will be unblocked at 20ns.

module fork_join;

  initial begin
    $display("-----------------------------------------------------------------");
    fork
      //-------------------
      //Process-1
      //-------------------
      begin
        $display($time,"\tProcess-1 Started");
        #5;
        $display($time,"\tProcess-1 Finished");
      end

      //-------------------
      //Process-2
      //-------------------
      begin
        $display($time,"\tProcess-2 Started");
        #20;
        $display($time,"\tProcess-2 Finished");
      end
    join

    $display($time,"\tOutside Fork-Join");
    $display("-----------------------------------------------------------------");
    $finish;
  end
endmodule

  Simulator output:


                       -----------------------------------------------------------------
                       0 Process-1 Started
                       0 Process-2 Startedt
                       5 Process-1 Finished
                       20 Process-2 Finished
                       20 Outside Fork-Join
                       -----------------------------------------------------------------
