Systemverilog Dynamic Array

Dynamic Array

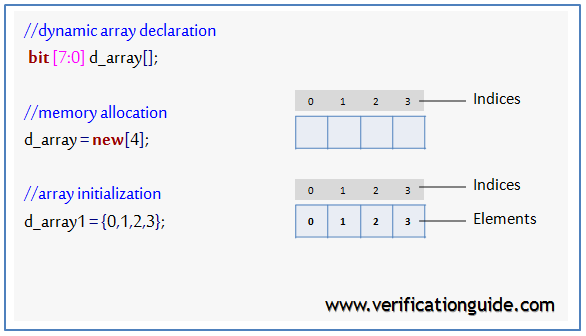

A dynamic array is one dimension of an unpacked array whose size can be set or changed at run-time. Dynamic array is Declared using an empty word subscript [ ].

The space for a dynamic array doesn’t exist until the array is explicitly created at run-time, space is allocated when new[number] is called. the number indicates the number of space/elements to be allocated.

Dynamic array Syntax


data_type array_name [ ];

data_type is the data type of the array elements.

Dynamic array methods


new[ ]    --> allocates the storage.
size( )    --> returns the current size of a dynamic array.
delete( ) --> empties the array, resulting in a zero-sized array.

Example:

//declaration
bit [7:0] d_array1[ ];
int d_array2[ ];

//memory allocation
d_array1 = new[4]; //dynamic array of 4 elements
d_array2 = new[6]; //dynamic array of 6 elements

//array initialization
d_array1 = {0,1,2,3};
foreach(d_array2[j]) d_array2[j] = j;


SystemVerilog Dynamic Array
SystemVerilog Dynamic Array

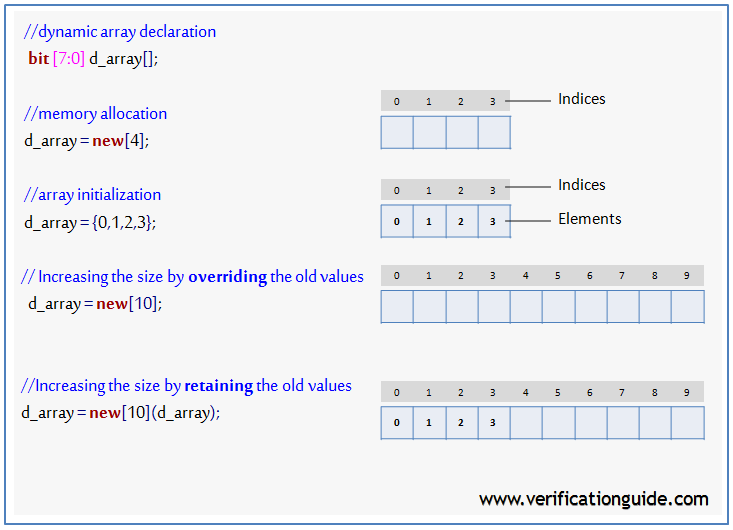

resize the dynamic array


//Change the length of the array after declaration/initialization
d_array1 = new[10]; //dynamic array of 10 elements

In the above syntax, d_array1 will get allotted with 10 new memory locations and old values of d_array1 will get deleted. old values of d_array1 elements can be retained by extending the current array by using the below syntax.

//Allocate 6 new elements and retain values of 4 elements.
d_array1 = new[10](d_array1);

SystemVerilog Dynamic Array resize
SystemVerilog Dynamic Array resize

Delete the dynamic array


//delete array
d_array1.delete;

array_name.delete() method will delete the array.

Dynamic array examples


Dynamic Array Declaration, Allocation and Initialization.

module dynamic_array;
  //dynamic array declaration
  bit [7:0] d_array1[];
  int       d_array2[];

  initial begin
    $display("Before Memory Allocation");
    $display("\tSize of d_array1 %0d",d_array1.size());
    $display("\tSize of d_array2 %0d",d_array2.size());

    //memory allocation
    d_array1 = new[4];
    d_array2 = new[6];

    $display("After Memory Allocation");
    $display("\tSize of d_array1 %0d",d_array1.size());
    $display("\tSize of d_array2 %0d",d_array2.size());

    //array initialization
    d_array1 = {0,1,2,3};
    foreach(d_array2[j])  d_array2[j] = j;

    $display("--- d_array1 Values are ---");
    foreach(d_array1[i])   $display("\td_aaray1[%0d] = %0d",i, d_array1[i]);
    $display("---------------------------------");

    $display("--- d_array2 Values are ---");
    foreach(d_array2[i])   $display("\td_aaray2[%0d] = %0d",i, d_array2[i]);
    $display("---------------------------------");
  end

endmodule

 Simulator Output

Before Memory Allocation
Size of d_array1 0
Size of d_array2 0
After Memory Allocation
Size of d_array1 4
Size of d_array2 6
--- d_array1 Values are ---
d_aaray1[0] = 0
d_aaray1[1] = 1
d_aaray1[2] = 2
d_aaray1[3] = 3
---------------------------------
--- d_array2 Values are ---
d_aaray2[0] = 0
d_aaray2[1] = 1
d_aaray2[2] = 2
d_aaray2[3] = 3
d_aaray2[4] = 4
d_aaray2[5] = 5
---------------------------------
Execute the above code on

Dynamic Array delete method



module dynamic_array;

  //dynamic array declaration
  bit [7:0] d_array1[];
  int       d_array2[];

  initial begin
    //memory allocation
    d_array1 = new[2];
    d_array2 = new[3];

    //array initialization
    d_array1 = {2,3};
    foreach(d_array2[j])  d_array2[j] = j;

    $display("--- d_array1 Values are ---");
    foreach(d_array1[i])   $display("\td_aaray1[%0d] = %0d",i, d_array1[i]);
    $display("---------------------------------");

    $display("--- d_array2 Values are ---");
    foreach(d_array2[i])   $display("\td_aaray2[%0d] = %0d",i, d_array2[i]);
    $display("---------------------------------");

    //delete array
    d_array1.delete;
    d_array2.delete;

    $display("After Array Delete");
    $display("\tSize of d_array1 %0d",d_array1.size());
    $display("\tSize of d_array2 %0d",d_array2.size());
  end
endmodule

 Simulator Output

--- d_array1 Values are ---
d_aaray1[0] = 2
d_aaray1[1] = 3
---------------------------------
--- d_array2 Values are ---
d_aaray2[0] = 0
d_aaray2[1] = 1
d_aaray2[2] = 2
---------------------------------
After Array Delete
Size of d_array1 0
Size of d_array2 0
Execute the above code on




resizing dynamic array


The below example shows the increasing dynamic array size by overriding and retaining old values.

module dynamic_array;

  //dynamic array declaration
  bit [7:0] d_array1[];
  int       d_array2[];

  initial begin
    //memory allocation
    d_array1 = new[2];
    d_array2 = new[3];

    //array initialization
    d_array1 = {2,3};
    foreach(d_array2[j])  d_array2[j] = j;

    $display("----- d_array1 Values are -----");
    foreach(d_array1[i])   $display("\td_aaray1[%0d] = %0d",i, d_array1[i]);

    $display("----- d_array2 Values are -----");
    foreach(d_array2[i])   $display("\td_aaray2[%0d] = %0d",i, d_array2[i]);

    //Increasing the size by overriding the old values
    d_array1 = new[4]; //Create dynamic array of 4 elements
    $display("Size of Array d_array1 %0d",d_array1.size());
    $display("----- d_array1 Values are -----");
    foreach(d_array1[i])   $display("\td_aaray1[%0d] = %0d",i, d_array1[i]);

    //Increasing the size by retaining the old values
    d_array2 = new[5](d_array2); //Create dynamic array of 5 elements, retaining old values
    $display("Size of Array d_array2 %0d",d_array2.size());
    $display("----- d_array2 Values are -----");
    foreach(d_array2[i])   $display("\td_aaray2[%0d] = %0d",i, d_array2[i]);

  end
endmodule

 Simulator Output

----- d_array1 Values are -----
d_aaray1[0] = 2
d_aaray1[1] = 3
----- d_array2 Values are -----
d_aaray2[0] = 0
d_aaray2[1] = 1
d_aaray2[2] = 2
Size of Array d_array1 4
----- d_array1 Values are -----
d_aaray1[0] = 0
d_aaray1[1] = 0
d_aaray1[2] = 0
d_aaray1[3] = 0
Size of Array d_array2 5
----- d_array2 Values are -----
d_aaray2[0] = 0
d_aaray2[1] = 1
d_aaray2[2] = 2
d_aaray2[3] = 0
d_aaray2[4] = 0
