SystemVerilog Do while and while

do while loop


A do while loop is a control flow statement that allows code to be executed repeatedly based on a given condition.

do while loop syntax


    do begin
        // statement -1
        ...
        // statement -n
    end
    while(condition);

In do-while,

  • the condition will be checked after the execution of statements inside the loop
  • the condition can be any expression.

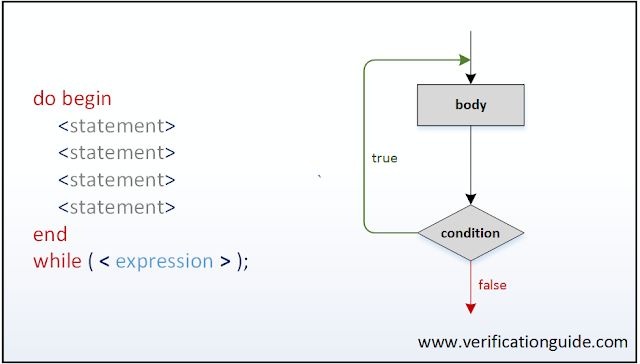

do while systemverilog
SystemVerilog do while loop
*click on image for a better view


do-while is similar to while loop but in case of while loop execution of statements happens only if the condition is true. In a do while, statements inside the loop will be executed at least once even if the condition is not satisfied.

do while loop example



module do_while;
  int a;

  initial begin
    $display("-----------------------------------------------------------------");

    do
      begin
        $display("\tValue of a=%0d",a);
        a++;
      end
    while(a<5);

    $display("-----------------------------------------------------------------");
  end
endmodule

  Simulator output:
-----------------------------------------------------------------
Value of a=0
Value of a=1
Value of a=2
Value of a=3
Value of a=4
-----------------------------------------------------------------
Execute the above code on


  Example-2:

module do_while;
  int a;

  initial begin
    $display("-----------------------------------------------------------------");

    do
      begin
        $display("\tValue of a=%0d",a);
        a++;
      end
    while(a>5);

    $display("-----------------------------------------------------------------");
  end
endmodule

  Simulator output:
-----------------------------------------------------------------
Value of a=0
-----------------------------------------------------------------
Execute the above code on






while loop SystemVerilog


A while loop is a control flow statement that allows code to be executed repeatedly based on a given condition.

while loop syntax


    while(condition) begin
        // statement -1
        ...
        // statement -n
    end

In a while,

  • Execution of statements within the loop happens only if the condition is true

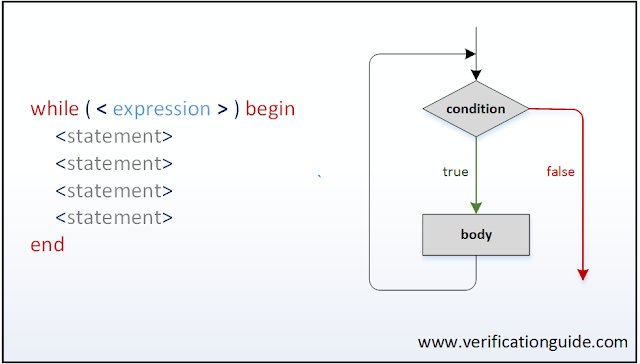

while loop systemverilog
SystemVerilog while loop
*click on image for a better view

while loop example


module while_loop;
  int a;

  initial begin
    $display("-----------------------------------------------------------------");

    while(a<5)
      begin
        $display("\tValue of a=%0d",a);
        a++;
    end
    $display("-----------------------------------------------------------------");
  end
endmodule

  Simulator output:
-----------------------------------------------------------------
Value of a=0
Value of a=1
Value of a=2
Value of a=3
Value of a=4
-----------------------------------------------------------------
Execute the above code on


  Example-2:

module while_loop;
  int a;
  initial begin
    $display("-----------------------------------------------------------------");

    while(a>5)
      begin
        $display("\tValue of a=%0d",a);
        a++;
      end
    $display("-----------------------------------------------------------------");
  end
endmodule

  Simulator output:
-----------------------------------------------------------------
-----------------------------------------------------------------
Execute the above code on
