Building blocks of SVA

SVA

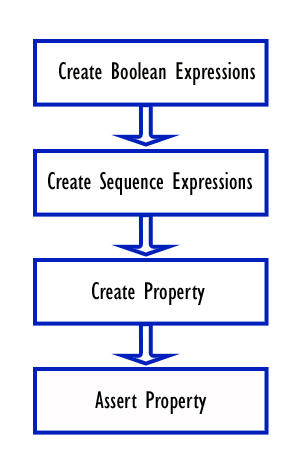

Below diagram shows the steps involved in the creation of an SVA checker,
SystemVerilog Assertions

Boolean expressions


The functionality is represented by the combination of multiple logical events. These events could be simple Boolean expressions.

Sequence


Boolean expression events that evaluate over a period of time involving single/multiple clock cycles. SVA provides a keyword to represent these events called "sequence."

Syntax


sequence name_of_sequence;
  ……
endsequence

Property


A number of sequences can be combined logically or sequentially to create more complex sequences. SVA provides a keyword to represent these complex sequential behaviors called "property".

Syntax


property name_of_property;
  test expression or
  complex sequence expressions
endproperty

Assert


The property is the one that is verified during a simulation. It has to be asserted to take effect during a simulation. SVA provides a keyword called "assert" to check the property.

Syntax


assertion_ name: assert_property( property_name );
