Abstract Class in SystemVerilog

Abstract Class


SystemVerilog class declared with the keyword virtual is referred to as an abstract class.

  • An abstract class sets out the prototype for the sub-classes.
  • An abstract class cannot be instantiated, it can only be derived.
  • An abstract class can contain methods for which there are only a prototype and no implementation, just a method declaration.

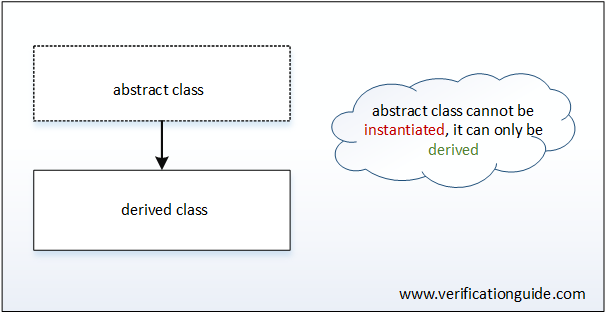

Abstract Class in SV
Abstract Class SystemVerilog
* Click on image for a better view

Abstract class Syntax


virtual class abc;
  //Class defination
endclass

Abstract Class Examples


Instantiating virtual class


In the below example,
Creating an object of a virtual class. An abstract class can only be derived, creating an object of a virtual class leads to a compilation error.

//abstract class
virtual class packet;
  bit [31:0] addr;
endclass


module virtual_class;
  initial begin
    packet p;
    p = new();
  end
endmodule

 Simulator Output

virtual_class, "p = new();"
Instantiation of the object 'p' can not be done because its type 'packet' is
an abstract base class.
Perhaps there is a derived class that should be used.

Execute the above code on




Deriving virtual class


In the below example,
An abstract class is derived and written extend the class and creating it.

//abstract class
virtual class packet;
  bit [31:0] addr;
endclass

class extended_packet extends packet;
  function void display;
    $display("Value of addr is %0d", addr);
  endfunction
endclass

module virtual_class;
  initial begin
    extended_packet p;
    p = new();
    p.addr = 10;
    p.display();
  end
endmodule

 Simulator Output

Value of addr is 10

Execute the above code on
